1/2 Mile Long Range Solar driveway alarm

Product introduction:

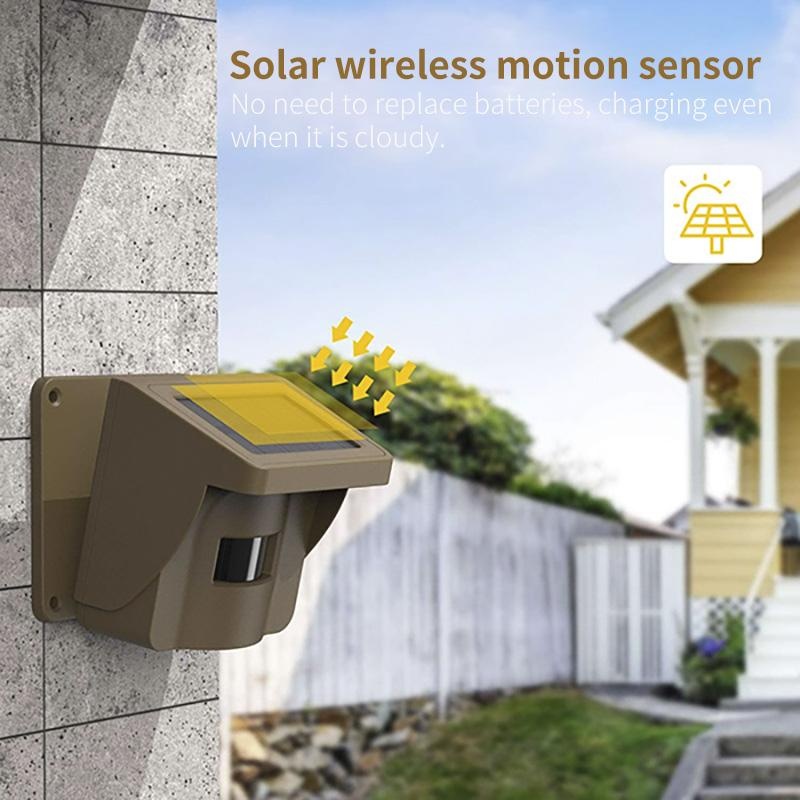

Solar Powered PIR Driveway Alarm:

RD200 solar PIR motion sensor is powered by the built-in 18650 lithium ion rechargeable battery via solar panel even on rainy or cloudy day, no need to replace battery. There is also a charge jack at the bottom of the sensor which can be charged by the included USB charging cord if the sensor will be installed indoor or darkness areas.

1/2 Miles Transmission & 30 Feet Detection Range:

High precision wireless driveway alarm system is featured with low-rate false alarm. The working range from the sensor to the receiver can reach up to 2000ft in the open area. 30ft detection range (Low:20ft, High:30ft) and 60°detection angle of the sensor are ideal for driveways, walking paths.

Fully Expandable System:

The wireless driveway alarm system includes one solar motion sensor and one receiver. It is able to expand up to 4 sensors and unlimited receivers for complete coverage of your property. 6 volume levels adjustment and 4 optional chime match different motion sensors around your property to distinguish where the motion is being detected.

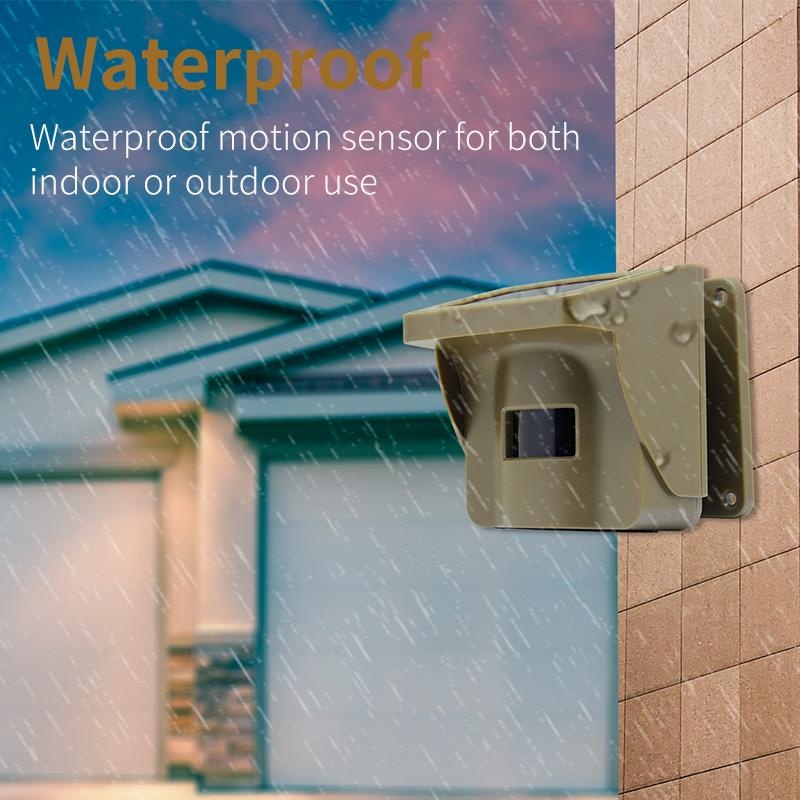

IP66 Waterproof:

RD200 solar driveway alarm is rated with IP66. The waterproof resistant design enables the PIR motion detector to work perfectly both outdoor and indoor, which is perfect for house, yard, gate, and anywhere of property you want to be alerted.

Easy installation:

You can easily install the solar motion sensor on the wall with enclosed screws. Please install the solar lights in the direction of sunlight to get a better charge.

Product Specification:

• Transmission Range: Max:1/2 Mile
• Channel: Max: 4 Channels
• PIR Detection Range: High/Low Sensitivity: 30 feet/20 feet
• RIR Detection Angle: Horizontal: 60 degree Vertical: 40 degree
• Detector Low Power Notification: Supported
• Solar power panel: Max:0.35W
• Detector Charging: DC 5V/1A
• Waterproof: IP66

The Solar Motion Sensor with Wireless Motion Alert is a convenient and affordable safety/security system

• Weatherproof outdoor solar sensor with adjustable sensitivity control.
• The solar sensor may be placed up to a 1/2 mile from the base unit in ideal condition.
• Alerts with light and sound when vehicles or pedestrians approach within a 30 feet radius.
• Expandable up to 4 solar sensors and unlimited receivers, it is perfect for home, business, property, and worksite.
• Super simple to set up. Takes only a few minutes to set up. Easy do it yourself installation.
• Detects motion in up to 4 different zones, Low battery indicator included.
• The receiver can be plugged in using the included AC adapter or can run on (4) AA batteries

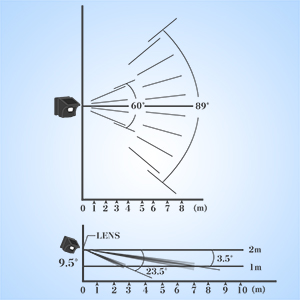

Detection Range

As shown in the diagram, the detection range can reach 60 degrees within 5m, and the range can be extended to 89 degrees when the distance is over 5m.

Angling downward the sensor to get the furthest range which is up to 9m/30 feet (Hi mode).

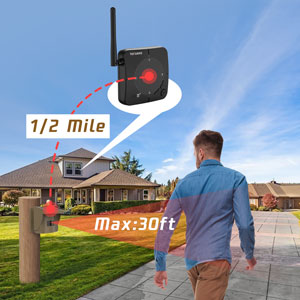

Wide Range & Angle

The wireless range from the sensor to the alarm receiver is up to 1/2 mile, the sensor detection range is up to 30ft. False alarms are minimized by adjusting the sensitivity of the sensor “eye” with Switch. (High= 30ft,Low = 20ft.)

Fully Expandable System

Build your own security alert system by pairing more motion sensors or receivers.It is able to expand up to 4 sensors and unlimited receivers for complete coverage of your property.

Trouble shootings:

Getting false alarm---Please try to set your sensor above the ground around 4.5-6ft high and 0-30 ft from your driveway, try to set your sensor in lower sensitivity.

Sensor going off---Please try to set your sensor above the ground around 4.5-6ft high and try to change the sensitivity, make sure there are no trees and moving branches in front of your sensor, please do not let your sensor's eye face to the sunlight directly. and one more important thing is that do not drop down your sensor on the ground.

Sensor stopped working---Please try to charge your sensor and see if the blue light will keep on or keep flashing, we need to confirm the battery is defective or not, if it keeps flashing Please get back to our service support through email in the user manual, we could replace the new one for you.

Sometimes work sometimes not---Please try to set your sensor above the ground around 4.5-6ft high and Please angle downward the direction of the sensor (rather than horizontal), that way the detector is looking at a vehicle for a longer period of time.

Other questions---Please get back to our service support through email in the user manual, we will do our best to make it right for you.
